SIM7500SA Board LGA LTE Cat-1 Module 100% Original Condition
| Place of Origin | China |
|---|---|
| Brand Name | SIMCON |
| Model Number | SIM7500SA |
| Price | $4.00 - $20.00/pieces |
| Packaging Details | Originals Packing. |
| Supply Ability | 10000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | LTE Cat-1 Module | Condition | 100% Original |
|---|---|---|---|
| Port | ShenZhen. | ||
| Highlight | LGA LTE Cat-1 Module,LTE Cat-1 Module,SIM7500SA |
||
Product Description

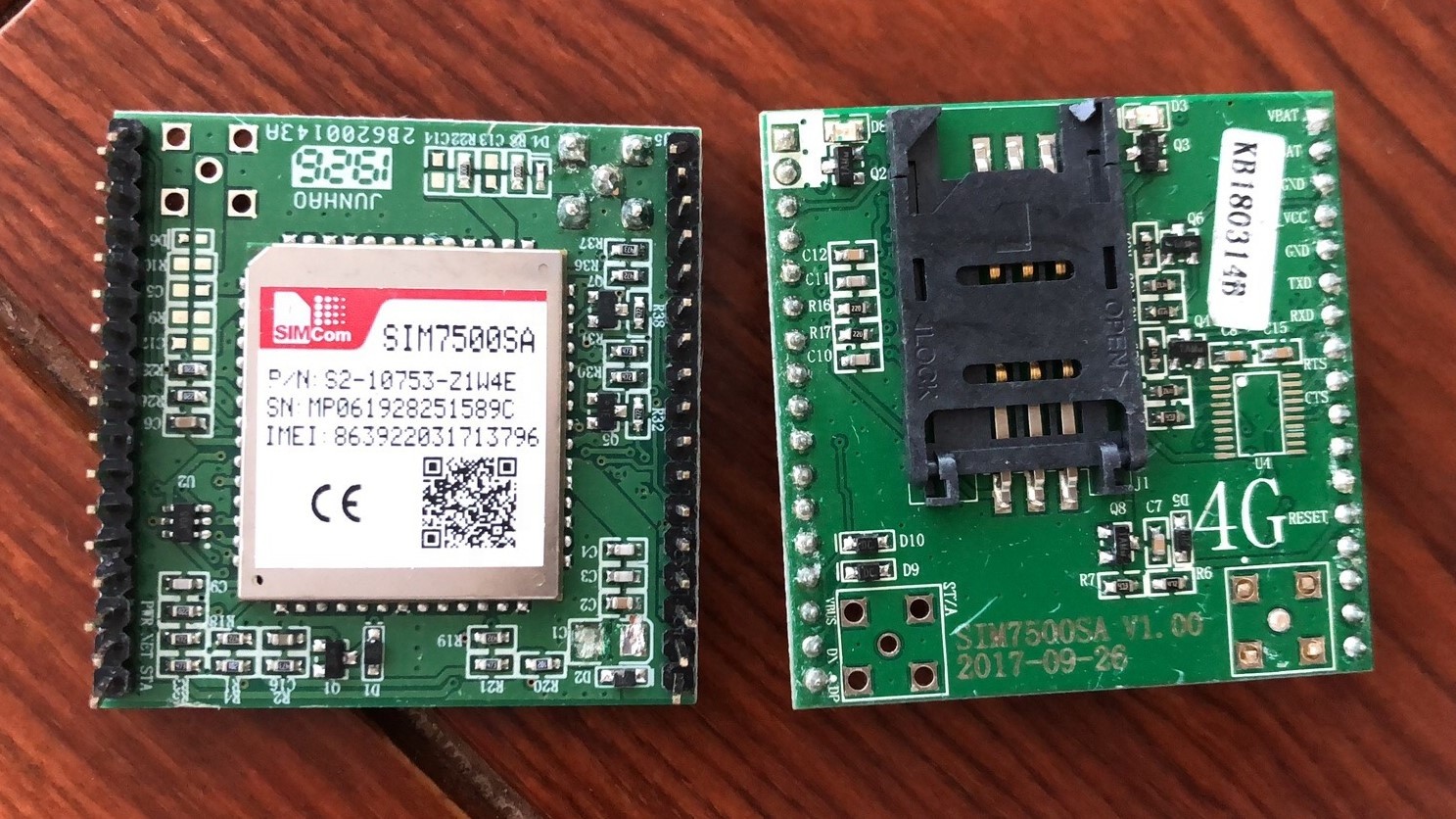

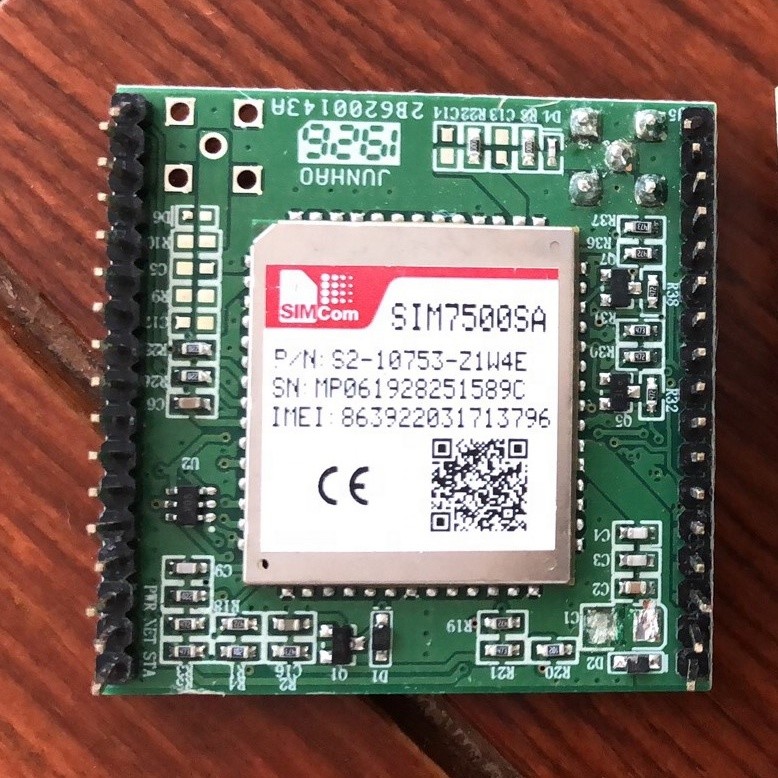

SIM7500SA Board
LTE Cat-1 Module
SIM7500X is a complete multi-band LTE-FDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LGA type which supports LTE CAT1
up to10Mbps for downlink and 5Mbps for uplink
data transfer. Designed in the compact and unified form factor, SIM7500X allows customer to design their application once for different technology and benefit from great development time-saving.
Variant for North America
SIM7500SA:
•LTE-FDD B1/B3/B5/B7/B8/B28
•UMTS/HSPA+ B1/B5
SIM7500SA:
•LTE-FDD B1/B3/B5/B7/B8/B28
•UMTS/HSPA+ B1/B5
Specifications for Data transfer
•LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
•HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236.8Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
•LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
•HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236.8Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
General features
•LGA Package
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃ to +85℃
•Dimension: 24*27*2.75mm
•Weight: 4.0g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
Other features
•USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
/HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
•LGA Package
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃ to +85℃
•Dimension: 24*27*2.75mm
•Weight: 4.0g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
Other features
•USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
/HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and
GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•ADC
Approvals
•RoHS Compliant
•CE (SIM7500E/SIM7500SA)
•FCC/PTCRB/AT&T(SIM7500A)
•FCC/GCF/Verizon* (SIM7500V)
•Jate/Telec/Softbank(SIM7500JE)
•Jate/Telec/Docomo* /Kddi* (SIM7500JC)
•ACMA (SIM7500SA)
*Under Development/Testing
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and
GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•ADC
Approvals
•RoHS Compliant
•CE (SIM7500E/SIM7500SA)
•FCC/PTCRB/AT&T(SIM7500A)
•FCC/GCF/Verizon* (SIM7500V)
•Jate/Telec/Softbank(SIM7500JE)
•Jate/Telec/Docomo* /Kddi* (SIM7500JC)
•ACMA (SIM7500SA)
*Under Development/Testing
