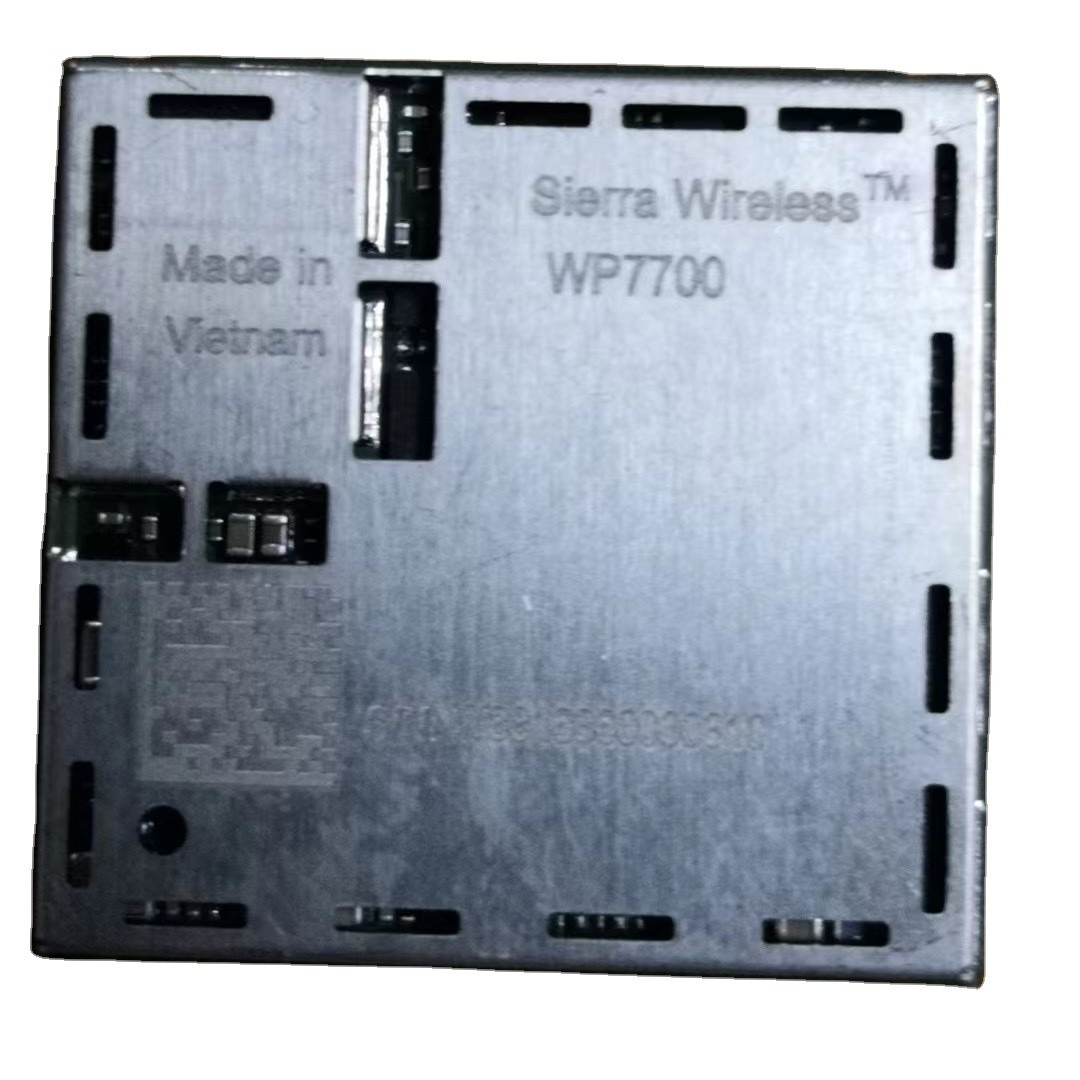

Cat-M1 / Cat-NB1 LTE Modem Module WP7700 Sierra Wireless AirPrime

Stock Sierra Wireless AirPrime WP7700 (LTE Cat-M1/NB1) Module

* LTE Cat-M1/NB1 Wireless Module

* LGA CF3 Form Factor

* Target Region: Global

* Supported LTE Band B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B26, B28

* LTE Cat-M1: DL 300Kbps, UL 375Kbps

* Carrier approval: AT&T, Verizon, NTT, Telstra, KT, SKT

Sierra AirPrime WP7700 is a LTE LTE-M/NB-IoT Module offering Low-Power Wide-Area (LPWA) LTE connectivity for any cellular network in the world.

Sierra WP7700 module for Cat-M1/NB1 worldwide networks is fully compliant with the 3GPP Release 13 standard, providing a new low-cost, low-power technology for low-bandwidth IoT applications with extended reach beyond traditional cellular.

Delivering up to 300Kbps download speed and 375Kbps upload speed, this module is ideal for real-time fixed or mobile applications such as consumer wearables, health monitoring devices, tracking devices, and smart home and smart city devices to name a few.

Sierra Wireless AirPrime WP7700 Technical Specifications:

* Technology Supported: Cat-M1/NB1

* Supported 4G/LTE Frequency Band: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B26, B28

* Target Region: Global

* Data Speed:
- Peak download rate: 300kbps(Cat-M1) | 27kbps(Cat-NB1)
- Peak upload rate: 375Kbps(Cat-M1) | 65kbps(Cat-NB1)

* Location Services/Satellite Systems (Optional): GPS, Galileo, Glonass, Beidou

* Cores
- Application Core: ARM® Cortex™- A7 (1.3GHz)
- Telecom Core: Dual QDSP6 (600MHz)

* Embedded Software: Secure Boot and Pre-certified firmware

* Application Framework:
- Embedded Platform: Legato open source
- Linux Distribution: Yocto, Long-term supported linux kernel(LTSI)

* Audio Codecs
- Digital audio
- PCM/12S
- Codec: HR, FR, EFR, AMR
- Echo cancellation & noise reduction
- DTMF

* USB Drivers: Windows 7 and 8, Linux

* Interfaces:
- UART: 2
- USB: 1
- 12C: 1
- ADC: 4
- GPIO: 18
- Tx ON Indicator: 1
- SIM Interface 1.8V/3V: 1
- SPI: 1

* Hardware:
- CF3 Form factor: LGA, Snap-in socket option

* Dimensions: 22 x 23 x 2.5mm

* Antenna diversity: Yes

* Antenna MIMO: Yes

* Temperature Range:
- Industrial Grade: -40°C to +85°C

* Approvals:
- Regulatory: PTCRB, FCC, GCF, IC
- Carrier: AT&T, Verizon, NTT, Telstra, KT, SKT

* Connectivity: Optional Ready-to-Connect Sierra Wireless embedded SIM

* Cloud Services:
- Free Unlimited FOTA upgrades
- Device Management option
- Application Enablement option
- Connectivity Management option

* Note: We supported as a firmware upgrade.
