EU3-E 3G GSM Module Wireless (Class 10) 3G GPRS Module WCDMA Type
| Place of Origin | Germany |
|---|---|
| Brand Name | CINTERION |
| Model Number | EU3-E |
| Price | $1.00 - $31.00/pieces |
| Packaging Details | 100% Originals with Factory Boxes. |
| Supply Ability | 1000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | WCDMA | Dual-Band Umts900/2100 MHz | Dual-Band GSM:900/1800 MHz |
|---|---|---|---|
| Port | ShenZhen | ||
| Highlight | 3G GSM Module,3G GSM Module Wireless,3G GPRS Module |
||
Product Description
CINTERION EU3-E 3G GSM.GPRS (Class 10),EDGE,HSDPA Wireless Module in Stock
| Model No | EU3-E |
| Category | 3G Module |
| Manufacturer | Cinterion |
| Form Factor | Board-to-Board Connector |
| Pins | 80-pin-pin |
| Dimensions | 44.6 x 33.9 x 5 mm |
| Technologies | GSM,GPRS(Class 10),EDGE,HSDPA |
| Dload Speed | 3.6 Mbps |
| Upload Speed | 384 kbps |
| Freq bands | |
| GPRS/EDGE | 1800/900 MHz |
| WCDMA | 2100/900 MHz |
| Temperature | -40 º C to 85 º C |
| Certifications | GCF, R&TTE, CE, RoHS |
| Carriers Approved | Vodafone |
| Interfaces | UART, GPIOs, ADC/DAC, USB, Audio |
| Voice Support | Analog |
| GPS Support | No |
Technical Data:
- EU3-E: Dual-Band UMTS: 900 / 2100 MHz
Dual-Band GSM: 900 / 1800 MHz -
EU3-P: Tri-Band UMTS: 850 / 900 / 2100 MHz
Dual-Band GSM: 900 / 1800 MHz - EDGE (E-GPRS) multi-slot class 10
- GPRS multi-slot class 10
- UMTS/HSDPA 3GPP release 5
- Output power: Class 4 (2 W) for GSM900 / Class 3 (0.25 W) for UMTS/HSDPA
Class E2 (0.5 W) for EDGE900/1800, Class 1 (1 W) for GSM1800 - Supply voltage range: 3.2 ... 4.2 V
- Dimensions: 33.9 x 44.6 x 5 mm
- Weight: ca. 10g
- Temperature range: -40 °C ... +85 °C
- EDGE: DL: max. 237 kbps, UL: max. 118 kbps
- GPRS: DL: max. 85.6 kbps, UL: max. 42.8 kbps
- UMTS: DL: max. 384 kbps, UL: max. 384 kbps
- HSDPA: DL: max. 3.6 Mbps, UL: max: 384 kbps
- Data: Full PBCCH support, CSD data transmission 14.4 kbps, V.110, USSD support
- Voice: speech codec HR, FR, EFR and AMR, Handset, Headset and Handsfree modes
- SMS: Text and PDU mode
- Fax: Group 3, Class 1
- Interfaces: U.FL-R-SMT 50 Ohm antenna connector, 80-pin board-to-board connector, Power supply, Audio: 1 x analog, USB 2.0 full speed (up to 480 Mbps), High Speed serial interface (up to 460 kbps), UICC/SIM card 3 V, 1.8 V, 10 GPIOs, ADC port
- Driver: Multiplex driver according 3GPP 27.010 for Microsoft® Windows XP, Windows Vista and Windows 7

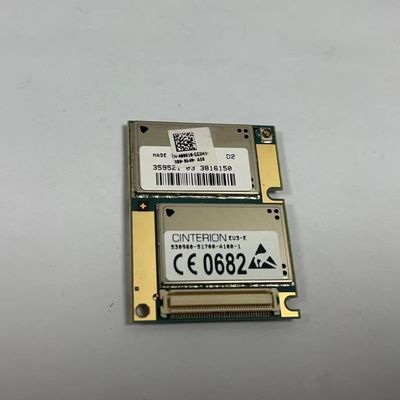

- Stock Photo:
