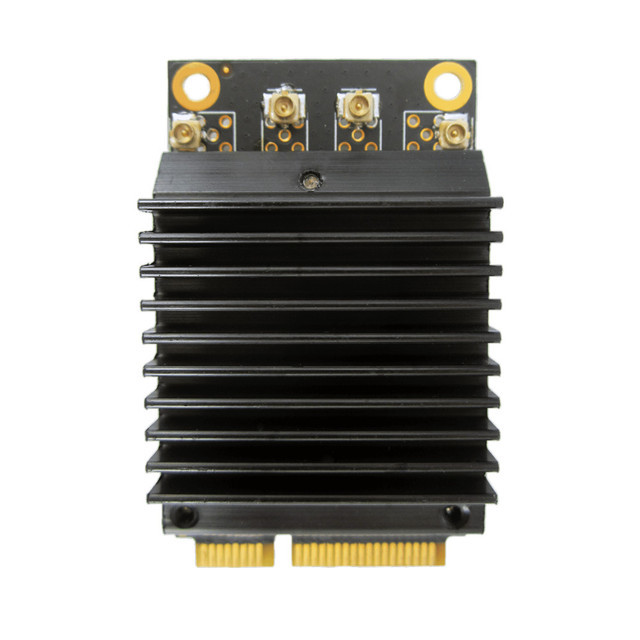

WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band

  • WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band
  • WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band
  • WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band
Place of Origin China
Brand Name COMPEX
Model Number WLE600VX
Price $1.00 - $60.00/pieces
Packaging Details 100% Originals with Factory Boxes.
Supply Ability 10000 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mini PCIe SHIPPING WAY DHL\UPS\Fedex\EMS\HK Post
Port ShenZhen
Highlight

Compex Wireless Router Module

,

Wireless Router Module MIMO

,

WLE1216V5-20
Leave a Message
Product Description

WLE600VX  WLE900VX WLE1216V5-20 and WLE200NX on hands for fast delivery.

The WLE600VX from Compex is a 2x2 MIMO WiFi Module designed for dual-band wireless access points. The 802.11ac and backward compatible (802.11a/b/g/n) module are based on Qualcomm's Atheros QCA9982 chipset. This module provides 21 dBm of output power at 2.4 GHz and 20 dBm of power at 5 GHz (per chain). It provides data rates of up to 867 Mbps. The module supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), and Space Time Block Code (STBC) along with 802.11d, e, h, i, k, r, v time stamp and w standards.

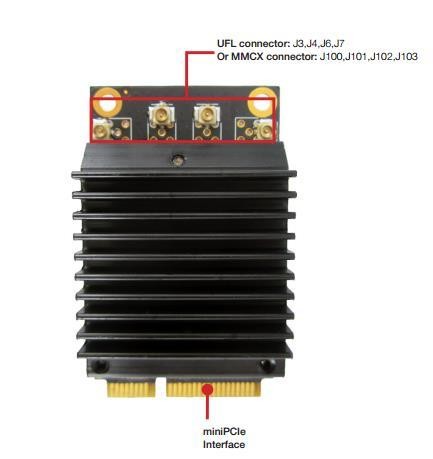

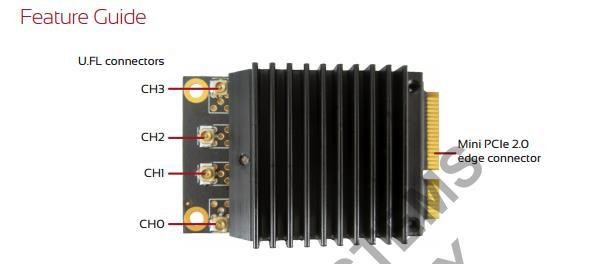

This FCC & CE Certified module measures 30.0 × 50.9 × 3.2 mm and has a Mini PCI Express 1.1 interface with two U.FL connectors. It also supports Dynamic Frequency Selection (DFS) and OFDM modulation techniques.
Product Specifications
Product Details
Part NumberWLE600VX
ManufacturerCompex Systems
Description2x2 MIMO Dual Band WiFi Module for Access Points
General Parameters
Technology WiFi
Frequency 2.412-2.472/5.150-5185 GHz
WiFi Standards 802.11 ac
Data Rate Up to 867 Mbps
Modulation OFDM, BPSK, QPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Supply Voltage 3.3 V
Output Power 20 (5 GHz) dBm, 21 dBm (2.4 GHz)
Power 3.5 W (Consumption)
Interface Type MiniPCI-e
Chip QCA9882
Mounting Type Surface Mount
Connector U.FL
Dimension 30.0 × 50.9 × 3.2 mm
Operating Temperature -20 to 70 Degree C
Storage Temperature -40 to 90 Degree C
RoHs Yes
WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band 0WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band 1WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band 2WLE1216V5-20 Wireless Router Module Compex MIMO WiFi Module Dual-Band 3
