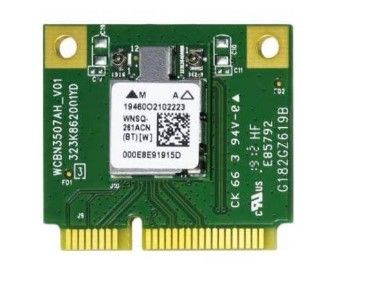

WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type

  • WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type
  • WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type
  • WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type
  • WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type
  • WPEQ-261ACN (BT) Wifi Wireless Module DC 3.3V Mini PCIE Type
Place of Origin China
Brand Name SPARKLAN
Model Number WPEQ-261ACN (BT)
Price $1.00 - $27.00/pieces
Packaging Details 100% Originals with Factory Boxes.
Supply Ability 10000 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type PCIE 802.11ac/a/b/g/n Wi-Fi Mini PCIe Module (WiFi 5) Qualcomm QCA6174A-5, 2T2R
Port ShenZhen
Highlight

DC 3.3V Wifi Wireless Module

,

Wifi Wireless Module Mini

,

WPEQ-261ACN (BT)
Leave a Message
Product Description



WPEQ-261ACN(BT)

2.4G/5G 802.11ac/a/b/g/n PCIE WIFI5 QCA6174A-5

Chipset: Qualcomm Atheros qca6174a-5

Antenna: 2 x IPEX mhf4 connector, 2T2R

Boundary dimension: half height Mini PCIe

Interface: PCIe: WLAN

Output power up to 18dbm

Support: Windows 7 / 8.1/10, Linux (open source) recommended kernel v4.0+

802.11ac/a/b/g/n Wi Fi half height Mini PCIe module (WiFi 5) Qualcomm qca6174a-5, 2T2R

STANDARD
WI-FI IEEE 802.11ac/a/b/g/n

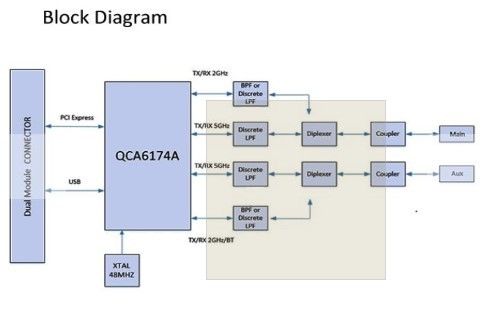

Chipset Qualcomm Atheros QCA6174A-5
Host Interface WLAN : PCIe
RADIO

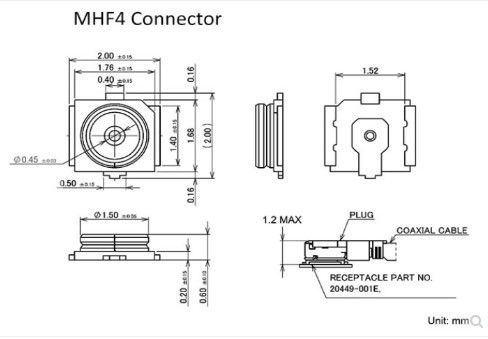

Antenna 2 x IPEX MHF4 connectors(MAIN use WLAN,AUX use WLAN/BT)
Operating Frequency 802.11ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

*Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @11Mbps 18dBm ≤ -76dBm
11g @ 54Mbps 16dBm ≤ -65dBm
11gn HT20 @ MCS 7 16dBm ≤ -64dBm
11gn HT40 @ MCS 7 16dBm ≤ -61dBm
11a @ 54Mbps 10.5dBm ≤ -65dBm
11an HT20 @ MCS 7 10dBm ≤ -64dBm
11an HT40 @ MCS 7 10dBm ≤ -61dBm
11ac VHT80 @ MCS 9 6dBm ≤ -51dBm
POWER CONSUMPTION
Continue TX 610mA
Continue RX 285mA
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -40~ 70°C (Operating) -40 ~ 85°C (Storing)
Humidity(Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE

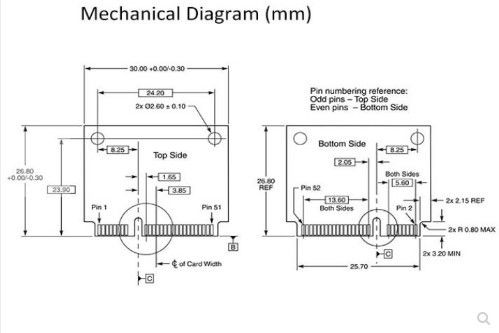

Dimension (MM) 30mm(±0.3mm) x 26.8mm(±0.3mm) x 2.5mm(±0.3mm)
Weight 2.6g
SOFTWARE
Driver Windows 7/8.1/10
Linux (Open Source), Recommend Kernel v4.0+
Security 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050




USA EU Region Japan Canada





ROHS REACH
