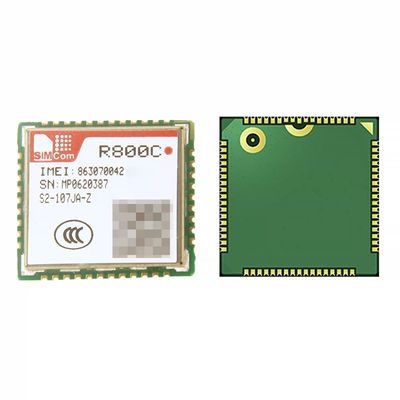

R800C Wifi Wireless Module LCC Type GSM GPRS Module Dual-Band

  • R800C Wifi Wireless Module LCC Type GSM GPRS Module Dual-Band
Place of Origin China
Brand Name SIMCOM
Model Number R800C
Price $1.00 - $2.00/pieces
Packaging Details 100% Originals with Factory Boxes.
Supply Ability 10000 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LCC GSM GPRS Module
Port ShenZhen
Highlight

LCC Wifi Wireless Module

,

Wifi Wireless Module GPRS

,

R800C
Leave a Message
Product Description

GSM GPRS Module R800C In Stock

R800C Wifi Wireless Module LCC Type GSM GPRS Module Dual-Band 0
GSM/GPRS Module R800C is a dual-band GSM/GPRS module that supports GPRS data transmission rate up to 85.6kbps, with powerful expansion capabilities and rich interfaces, including UART, USB2.0, GPIO, etc. This module provides great flexibility and easy integration capabilities for customers' applications. Product advantage  Very small size dual-band GSM/GPRS module  LCC package, compatible with SIM800C block package  Very low power consumption  Built-in TCP/UDP network protocol General characteristics
Supported frequency band: 900/1800MHz  GPRS multi-slot class: 12/10  Size: 17.6*15.7*2.3mm  Weight: 1.3±0.1g   Supply voltage: 3.4 ~ 4.4V   Operating temperature: -40℃ ~85℃   GPRS mobile station class B  Meet GSM phase 2/2+ standard: Class 4 (2W @ 850/900MHz) – Class 4 (2W @ 900MHz) – Class 1 (1W @ 1800MHz)  Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT command set)  Low power consumption data transmission   GPRS class 12: Uplink/Downlink up to 85.6Kbps   Support PBCCH   Coding schemes CS 1, 2, 3, 4   PPP-stack  Support USSD SMS Peer-to-peer MO and MT  SMS broadcast  Text and PDU modes Software features   0710 MUX protocol   Built-in TCP/UDP protocol  FTP/HTTP/MQTT/NTP  Base Station Location*  SSL/TLS*  TTS*  EAT* hardware interface   Analog voice interface  Serial   SIM card (1.8V/3V)   Support RTC   Analog voice   ADC   GPIO   Antenna: GSM Certification  3C/SRRC/NAL
 CE/FCC
