NL668 NL668-EAU NL668-EU/AM 4G LTE Cat4 Module 150Mbps MiniPCIe

NL668-E MiniPCIe LTE Module Technical Specifications

NL668 NL668-EAU NL668-EU/AM 4G LTE Cat4 module 150Mbps Mini PCIe B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 compatible EC25-E

General Features

Dimension(mm):30.00 x 51.00 x 4.90

Package:Mini PCIe

Power Supply:3.3V~4.2V

Operating Temp.:-40℃~+85℃

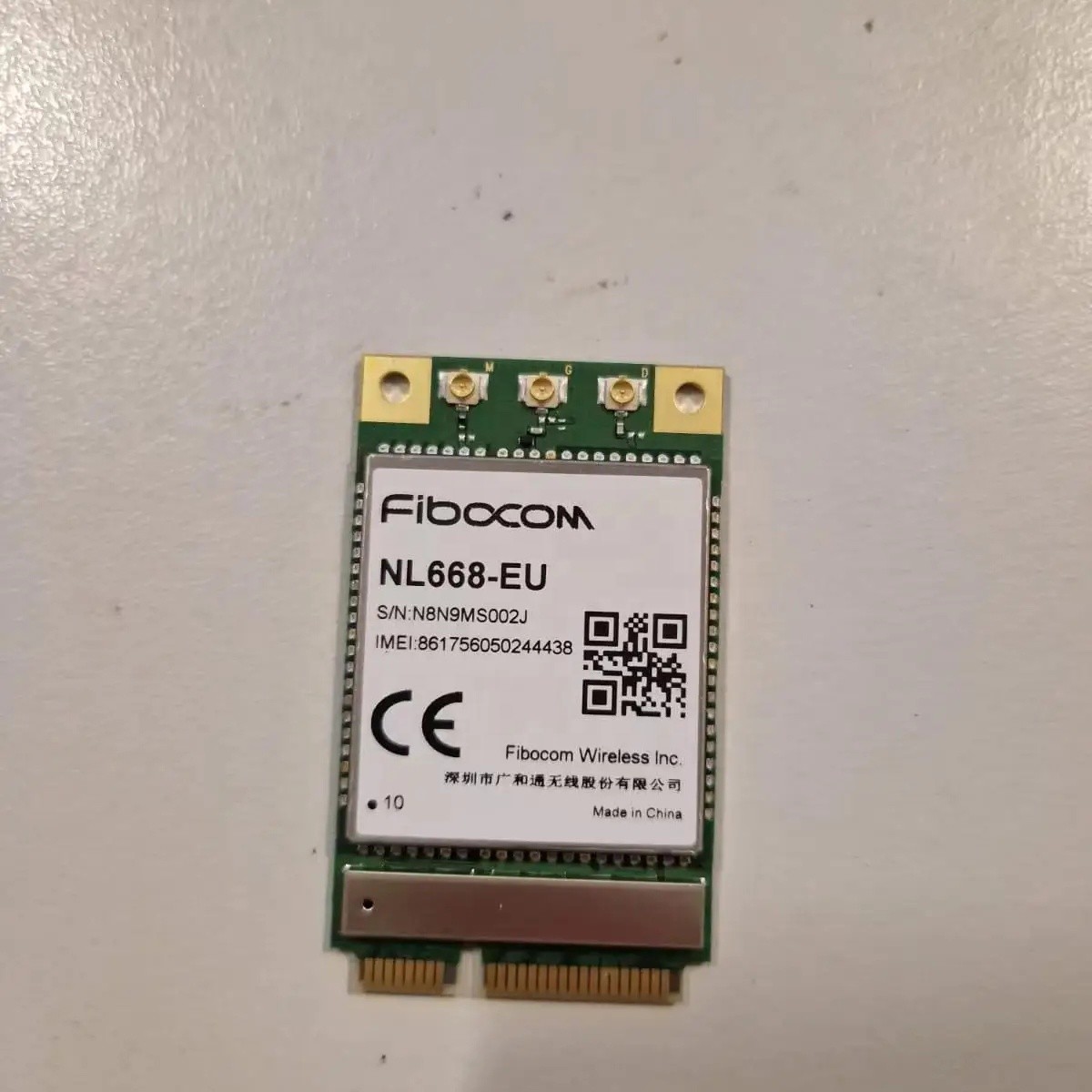

NL668-EU MiniPCIe

LTE FDD:B1/B3/B5/B7/B8/B20

LTE TDD:B38/B40/B41

WCDMA:B1/B5/B8

GSM/GPRS/EDGE:850/900/1800MHz

NL668-EAU MiniPCIe

LTE FDD:B1/B3/B5/B7/B8/B20/B28

LTE TDD:B38/B40/B41

WCDMA:B1/B5/B8

GSM/GPRS/EDGE:850/900/1800MHz

NL668-AM MiniPCIe

LTE FDD:B2/B4/B5/B12/B13/B66/B71

WCDMA:B2/B4/B5

Interface:

SIM:x 1, 1.8V/3.0V

USB2.0:x 1

UART:x 1

ADC:x 2

Data:

LTE FDD(Mbps):150(DL)/50(UL)

LTE TDD(Mbps):130(DL)/35(UL)

DC-HSPA+(Mbps):42(DL)/5.76(UL)

HSPA/HSPA+(Mbps):21(DL)/5.76(UL)

UMTS(kbps):384(DL)/384(UL)

TD-SCDMA(Mbps):4.2(DL)/2.2(UL)

EDGE(kbps):236.8(DL)/236.8(UL)

GPRS(kbps):85.6(DL)/85.6(UL)
