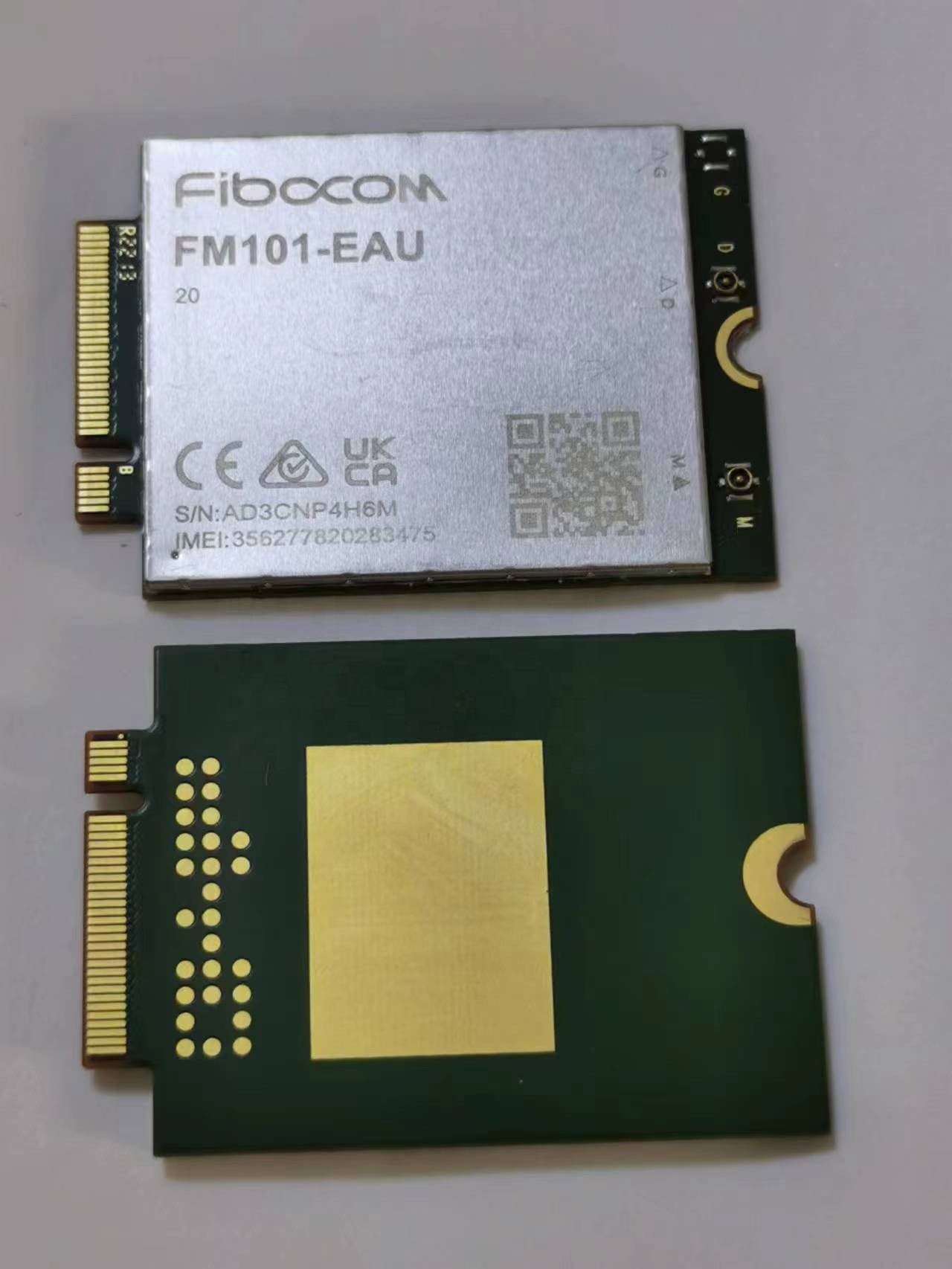

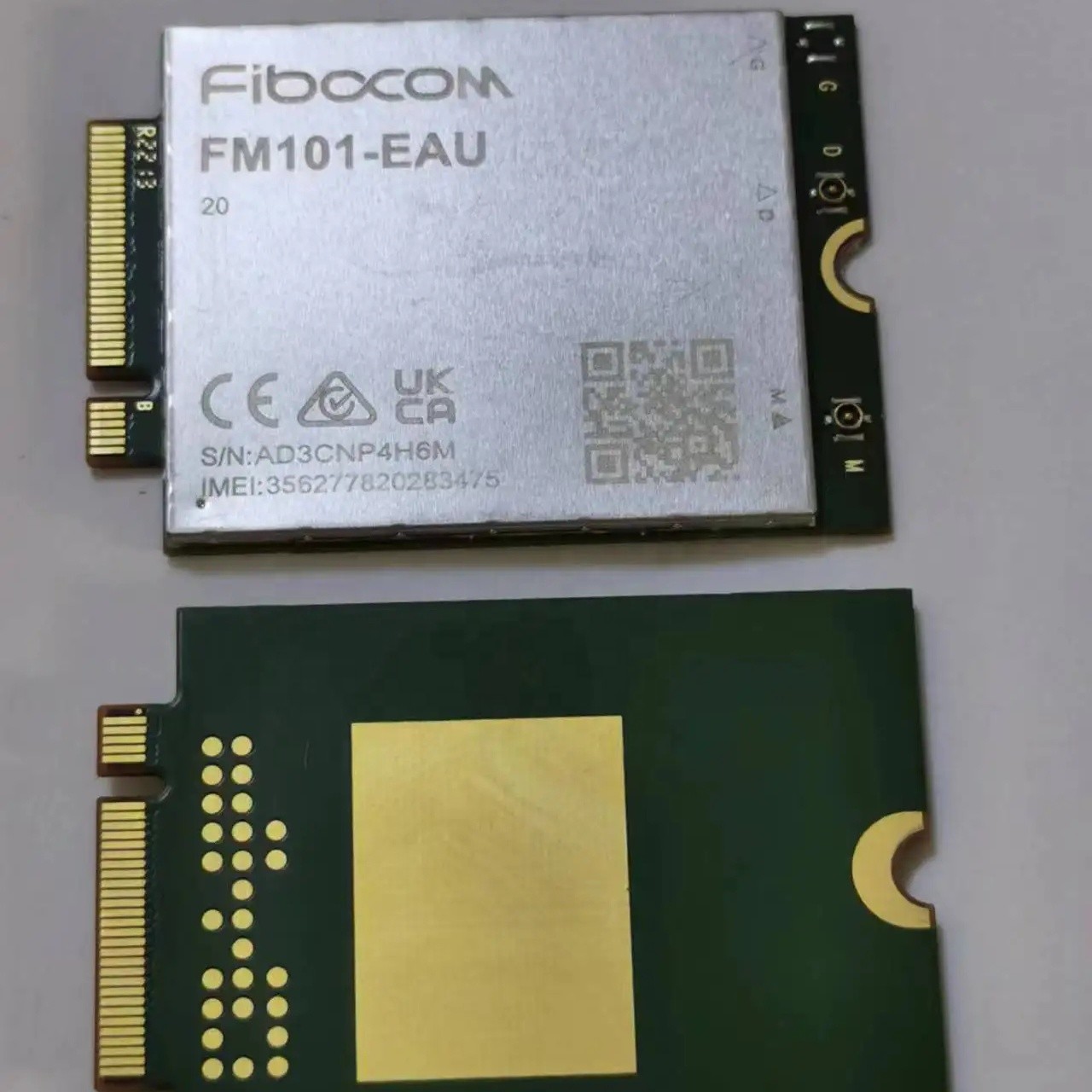

Fibocom FM101-EAU LTE-A Cat 6 Module 300 Mbps mobile networks

  • Fibocom FM101-EAU LTE-A Cat 6 Module 300 Mbps mobile networks
  • Fibocom FM101-EAU LTE-A Cat 6 Module 300 Mbps mobile networks
Place of Origin Guangdong, China
Brand Name Fibocom
Model Number FM101-EAU
Price $3.00 - $15.00/pieces
Packaging Details 100% Originals Brand-New.
Supply Ability 10000 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Smart Electronics Pcba Supplier Type PCB Assembly Manufacturer
Copper Thickness Standard Condition 100% Original New
Port ShenZhen; HongKong.
Highlight

LTE-A Cat 6 Module

,

Cat 6 Module

,

FM101-EAU
Leave a Message
Product Description

Fibocom FM101-EAU LTE-A Cat 6 Module Available In Stock

The FM101-EAU-20 from Fibocom is an LTE-A Cat 6 Module that covers mobile networks in Europe, Asia, and Australia. It delivers a downlink data rate of 300 Mbps (LTE)/42 Mbps (WCDMA) and uplink data rate of 50 Mbps (LTE)/11 Mbps (WCDMA). This module is powered by the Qualcomm Snapdragon X12+ LTE Modem and supports 3GPP Release 12 standard features. It also includes a multi-constellation GNSS receiver (GPS/ Galileo/ GLONASS/ BeiDou), which provides high-performance positioning and navigation. The module requires a DC supply of 3.8 V.

The FM101-EAU-20 can be controlled via USB 3.0/2.0, PCIe 2.0, UART, SPI, GPIO, I2S, UIM, and I2C interfaces. It is available in an M.2 package that measures 30.0 x 42.0 x 2.3 mm and is ideal for use in high data throughput IoT applications. The module can also be used in a variety of cellular terminals such as CPE, STB, IPC, ODU, and PDA, extending its applicability to a wide range of eMBB application scenarios such as Industrial IoT, Smart Cities, C-V2X, etc.



Product Specifications

Product Details

  • Part Number
    FM101-EAU

  • Manufacturer
    Fibocom

  • Description
    300 Mbps LTE-A Cat 6 Module for Europe, Asia, and Australia



General Parameters

  • Region
    APAC, EMEA

  • Carrier
    Deutsche Telekom

  • Fallback
    3G

  • GNSS Standard
    GPS, Glonass, BeiDou, Galileo

  • LTE/4G Band
    B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41

  • UMTS/HSPA/3G/WCDMA Band
    B1, B3, B5, B8

  • Cellular Standards
    LTE Cat 6

  • IoT
    Yes

  • Certification
    GCF, CE

  • Form Factor
    M.2

  • Generation
    4G/LTE, 2G

  • Interface
    USB 3.0, 2.0, PCIe 2.0, UART, SPI, GPIO, I2S, UIM, I2C

  • Data Rate
    11 to 300 Mbps

  • Datarate Download Link
    42 to 300 Mbps

  • Datarate Uplink
    11 to 50 Mbps

  • Integrated Features
    GNSS

  • Voltage
    3.135 to 4.4 V

  • Size
    30 x 42 x 2.3 mm

  • Operating Temperature
    -30 to 75 Degree C

  • Package Type
    Surface Mount

  • ROHS
    Yes

  • Processor
    Qualcomm Snapdragon® X12+ LTE Modem

  • Sms
    Yes

  • Voice
    Yes
