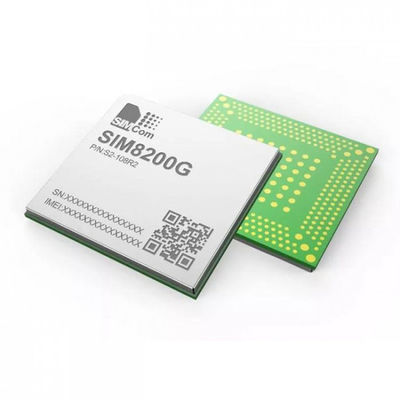

SIMCOM SIM8200G 5G NR Sub-6G Module NR/LTE-FDD/LTE-TDD/HSPA+ module
| Model Number | SIMCOM SIM8200G 5G NR Sub-6G Module |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 5g | Maximum Upload Speed | 1.25Gbps |
|---|---|---|---|
| Dimensions | 30mm X 40mm X 2.3mm | Form Factor | M.2 |
| Supported Operating Systems | Windows, Linux, Android | Sim Card Type | Nano SIM |
| Maximum Download Speed | 5Gbps | Temperature Range | -40°C To +85°C |
| Network Technology | 5G LTE | Frequency Bands | N1, N3, N5, N7, N8, N20, N28, N38, N40, N41, N66, N71 |
| Power Supply | 3.3V | Certifications | FCC, CE, RoHS |
Product Description
SIMCOM SIM8200G is Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module solution in a LGA type which supports R15 5G NSA/SA up to 4.0 Gbps data transfer.
It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The 5G NR Module provides much flexibility and ease of integration for customer's application.
The package of SIMCOM SIM8200G 5G module is LGA form factor. This also minimize the investments of customers, and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
