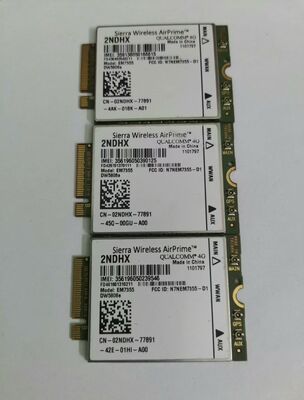

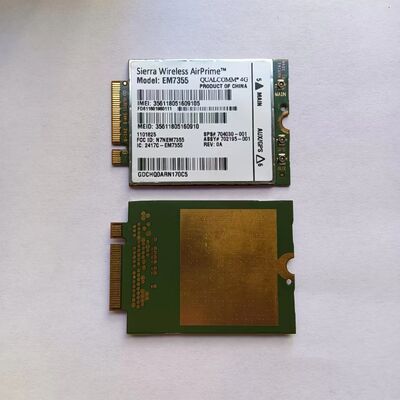

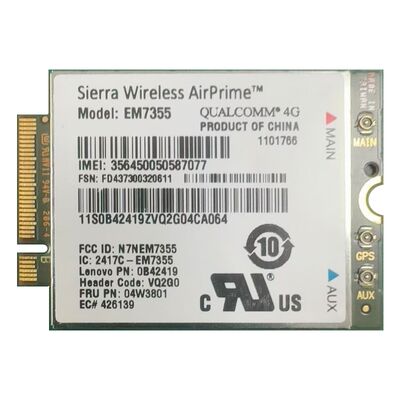

Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
| Place of Origin | China |
|---|---|
| Brand Name | Sierra Wireless |
| Model Number | EM7355 |
| Minimum Order Quantity | 100 |
| Price | $12.00 - $20.00/pieces |
| Packaging Details | Originals Brand-New. |
| Delivery Time | 2-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 Piece/Pieces per Day |
Product Details
| Frequency Band Class | Dual Band | Storage Size | 128 MB |
|---|---|---|---|
| Data Transfer Rate | Up To 1.9 Gbps | Usage | Households |
| Connectivity Technology | Wireless | Guest Network | Yes |
| Weight | Not Specified | Number Of Antennas | 3 |
Product Description
EM7355 Datasheet
EM7355 is a 4G LTE Cat.3 M.2 wireless communication module from the AirPrime series by Sierra Wireless . It is mainly used in laptops, industrial PCs, tablets and other devices to provide global multi-mode cellular network access and GNSS positioning.
I. Core Specifications
- Manufacturer: Sierra Wireless
- Chipset Platform: Qualcomm MDM9615
- Package: M.2 3042 (52-pin)
- Dimensions: 42 × 30 × 2.3 mm
- Network Standards:
- LTE FDD Cat.3: Downlink 100 Mbps, Uplink 50 Mbps
- Supports DC‑HSPA+ / HSPA+ / WCDMA, CDMA 1x/EVDO Rev.A, GSM/EDGE
- GNSS: GPS + GLONASS (passive antenna supported)
- Main Frequency Bands (North American Version):
- LTE: B2/B4/B5/B13/B17/B25
- UMTS: B1/B8/B26
- GSM/EDGE: 850/900/1800/1900 MHz
- CDMA: 800/1900 MHz
- Interface: USB 2.0
- Operating Temperature: -25°C ~ +60°C
- Certifications: FCC, IC, PTCRB, AT&T / Verizon / Sprint / T‑Mobile carrier certifications
- System Support: Windows 7/8, Linux
II. Typical Applications
- Built-in 4G for laptops and ultrabooks
- Industrial tablets, rugged notebooks (e.g. Panasonic Toughbook)
- Automotive, medical and financial terminals
- IoT gateways and industrial routers
III. Features
- Multi-mode full network compatibility: Covers mainstream North American 4G/3G/2G bands
- High integration: Built-in RF, baseband, power management and GNSS for simplified design
- Complete certifications: Directly usable in end products, reducing certification costs
- Industrial temperature range: Adaptable to harsh environments
IV. Usage Notes in Mainland China
EM7355 is a North America-customized version and does not support Chinese LTE bands B1/B3/B8. 4G service is basically unavailable in mainland China; only partial 2G/3G (China Unicom) may be accessible in some areas. For domestic 4G use, models supporting B1/B3/B8 such as EM7345, EM7455, FM350 are recommended.
