Embedded ME906s-158 M.2 LTE module LTE FDD EDGE/GSM/GPRS Module
| Place of Origin | China |
|---|---|
| Brand Name | HuaWei |
| Model Number | ME906s-158 |
| Price | $1.00 - $25.00/pieces |
| Packaging Details | Brand-New Originals Factory Boxes. |
| Supply Ability | 10000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| EDGE/GSM/GPRS Module | LTE FDD Module | Port | ShenZhen |
|---|---|---|---|
| Highlight | Embedded M.2 LTE module,M.2 LTE module,ME906s-158 Module |
||
Product Description

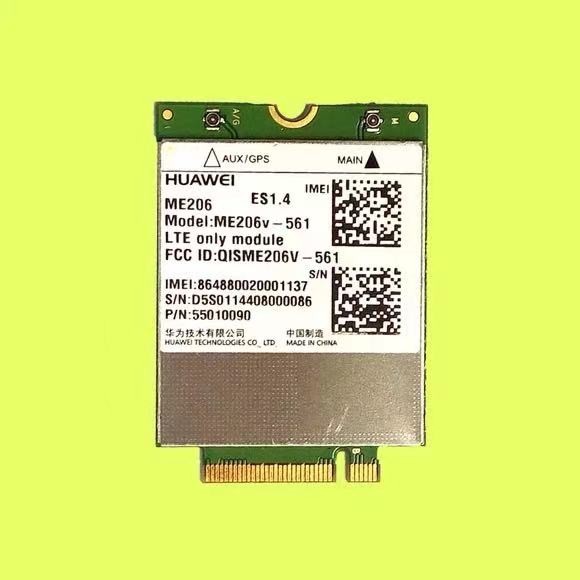

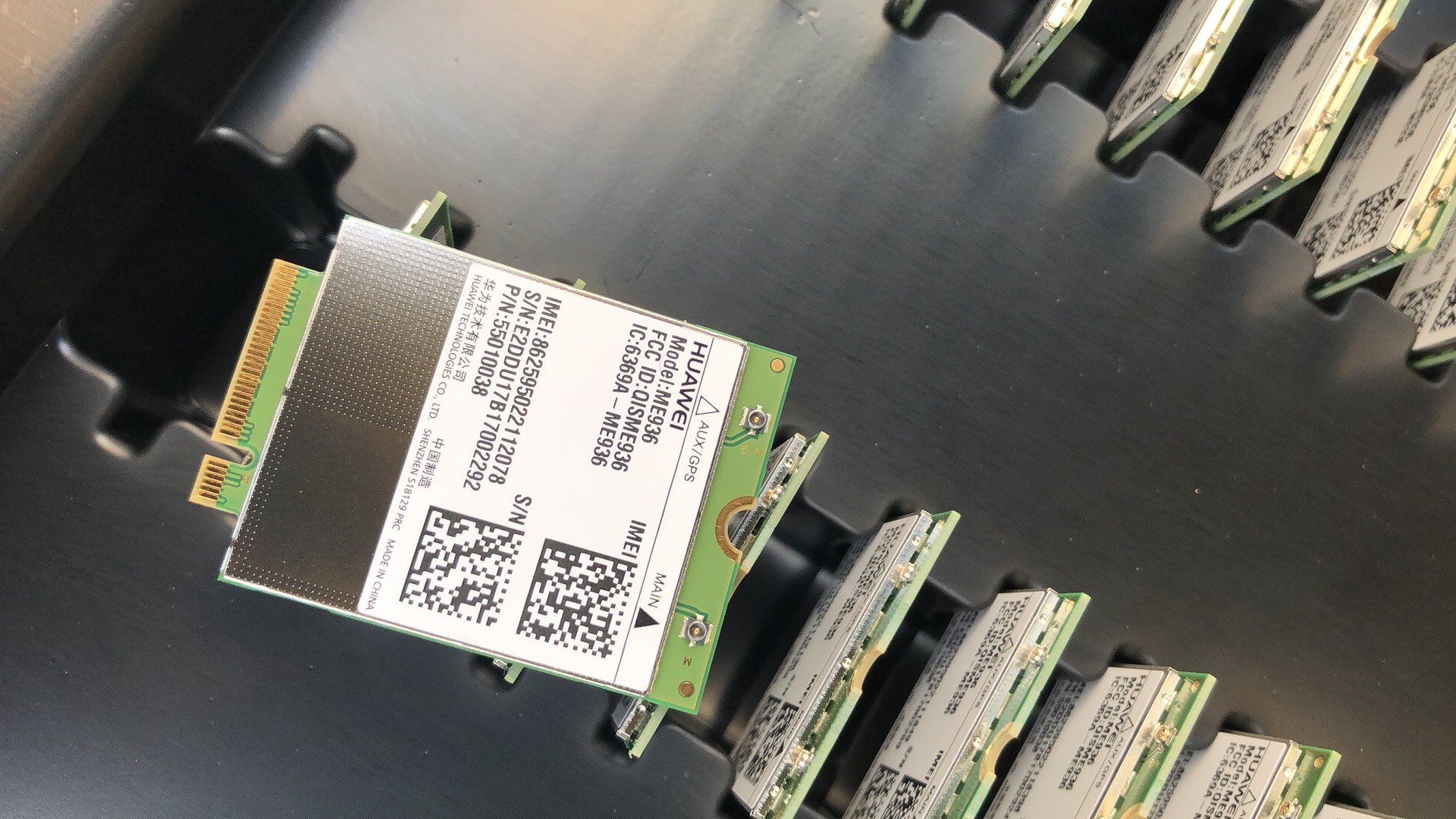

ME906s-158 ME936 ME206v-561 ME206 in stock available for fast delivery .
-

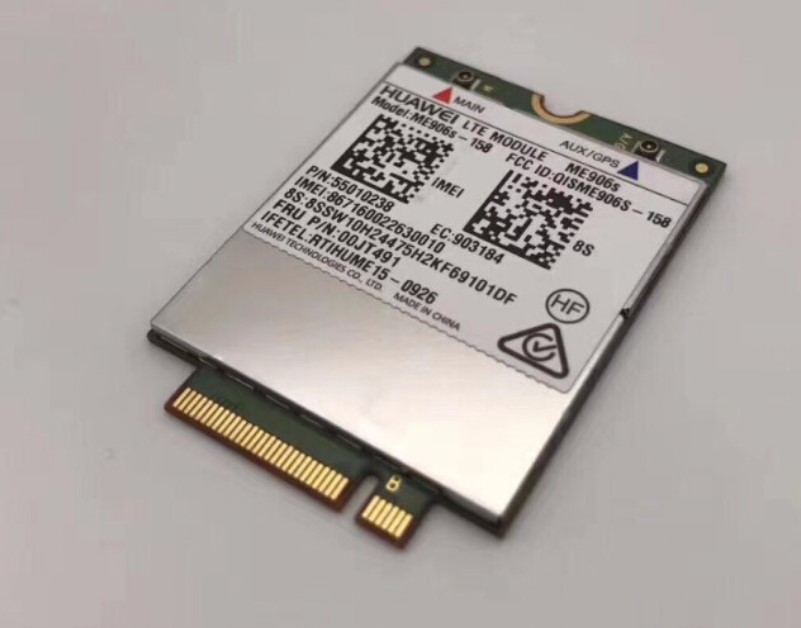

ME906s-158
ME906s-158 is a M.2 interface LTE module with Hisilicon Balong V711 chipset embedded, supporting LTE (FDD)
B1/B2/B3/B5/B7/B8/B20/B28, Qual-band DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8 for Europe and APAC network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Europe carrier certifications, enabling easier and more flexible design and integration into end devices.
B1/B2/B3/B5/B7/B8/B20/B28, Qual-band DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8 for Europe and APAC network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Europe carrier certifications, enabling easier and more flexible design and integration into end devices.
ME906s-158 is the ideal choice for Notebook, Tablet and Ultrabook etc.
All modules comply with the RoHS directive and Regional certification.
Form Factor75-pin M.2/NGFFBandsLTE FDD:B1,B2,B3,B5,B7,B8,B20,B28
DC-HSPA+/HSPA+/HSPA/WCDMA:B1,B2,B5,B8
EDGE/ GPRS/GSM 1900/1800/900/850 MHz
Data Transfer RateEDGE: DL 236.8 kbps/UL 236.8 kbps
WCDMA PS: DL 384 kbps/UL 384 kbps
HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
DC-HSPA+: DL 42Mbps/UL 5.76 Mbps
LTE FDD: DL 150 Mbps/UL 50 Mbps @20M Bandwidth cat4
InterfaceAntenna interfaces * 2
M.2 Socket
Signal Control interface
USB 2.0 interface high speed
USIM Card interface
Power supply interface
ApprovalsCE
GCF
FCC
NCC
RCM
Operator TA: Vodafone, Orange, Telstra, Spark New Zealand
Form Factor75-pin M.2/NGFFBandsLTE FDD:B1,B2,B3,B5,B7,B8,B20,B28
DC-HSPA+/HSPA+/HSPA/WCDMA:B1,B2,B5,B8
EDGE/ GPRS/GSM 1900/1800/900/850 MHz
Data Transfer RateEDGE: DL 236.8 kbps/UL 236.8 kbps
WCDMA PS: DL 384 kbps/UL 384 kbps
HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
DC-HSPA+: DL 42Mbps/UL 5.76 Mbps
LTE FDD: DL 150 Mbps/UL 50 Mbps @20M Bandwidth cat4
InterfaceAntenna interfaces * 2
M.2 Socket
Signal Control interface
USB 2.0 interface high speed
USIM Card interface
Power supply interface
ApprovalsCE
GCF
FCC
NCC
RCM
Operator TA: Vodafone, Orange, Telstra, Spark New Zealand
