ME909s-120P V2 Standard Mini PCIe module first LTE cat4 module
| Place of Origin | China |
|---|---|
| Brand Name | HuaWel |
| Model Number | ME909s-120P V2 |
| Price | $0.10 - $2.50/pieces |
| Packaging Details | Originals Brand-New. |
| Supply Ability | 10000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Mini PCIe | WARRANTY | 1 Year |
|---|---|---|---|
| Port | ShenZhen | ||
| Highlight | Standard Mini PCIe module,Mini PCIe module LTE,ME909s-120P V2 |
||
Product Description
ME909s-120 V1 100%Originals and New parts each;
ME909s-120P V2 100%Originals and New Parts each; both available in stock. for fast delivery.

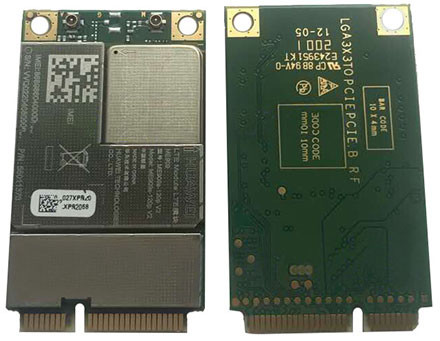

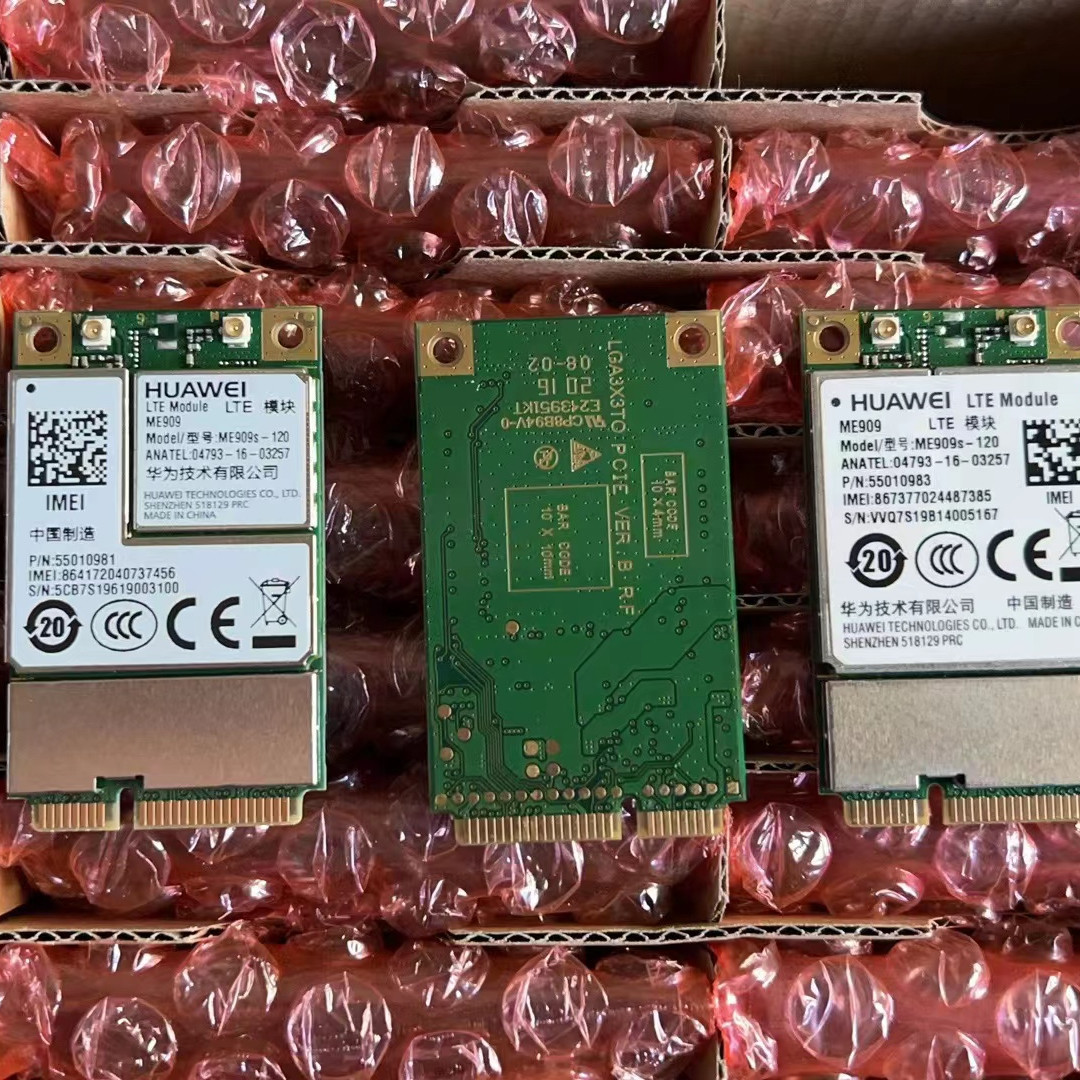

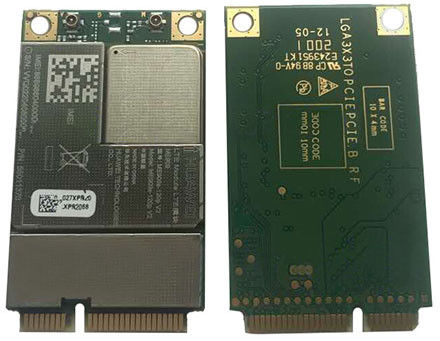

ME909s-120 Mini PCIe module
• ME909s-120 Mini PCIe module is the first LTE cat4 module based on Hisilicon chipset. With high quality designed small size and standard Mini PCIe form factor, ME909s-120 is especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
• With pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and enhanced AT commands. ME909s-120 PCIe has a sister model ME909s-120 LGA Module.
Technical Specifications:
• Form factor: Mini-PCIe
• 4G LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
• DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
• EDGE/GPRS/GSM: 850/900/1800/1900 MHz
• LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
• DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
• Power Supply: 3.2 V to 4.2 V ( 3.8 V recommended)
• Temp Range: -40℃ to 85℃
• Voice: PCM Voice and DTMF
Special Features
- CDC-ECM
- FOTA
- Firmware Update via USB
- Embedded UDP/TCP/FTP(s)/HTTP(s) stack
- High-speed UART
- CMUX
- Sleep mode
Operating System: Linux, Android, WinCE, Windows 8/10
ME909S-120 V2 MINI PCIE completely replace ME909S-120 MINI PICE ., standard Mini PCIe package; supports downlink 150Mbps, uplink 50Mbps transmission rate; provides high-quality voice and SMS functions; rich extension functions: FOTA, USSD, IPV6/IPV4... Built-in TCP/IP protocol stack; Huawei extended AT command set...
It is an ideal product for automotive, tracking, industrial routers, security monitoring, industrial flat panel and other industrial applications..
Size
Height 30.4mm
51mm wide
Thick 3.52mm
Package: Mini-PCIe
Frequency Band
ME909s-120 V2 Mini PCIe:
LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1, B2, B5, B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Rate
DC-HSPA+ : Downstream: 42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downstream: 150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
Interface:
Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
led
Power supply
Reset
Voltage : 3.2 V to 4.2V (recommended value: 3.8V)
Voice: PCM voice
DTMF
Temperature Tange : -40°C to 85°C
Special Function:
CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Operating System: Linux, Android, WinCE, Windows 8/10
Certification: CE, GCF
