ME906s-158 LTE FDD Module +EDGE/GSM/GPRS Module Mini PCIe Type

  • ME906s-158 LTE FDD Module +EDGE/GSM/GPRS Module Mini PCIe Type
Place of Origin China
Brand Name HuaWei
Model Number ME906s-158
Price $1.00 - $2.50/pieces
Packaging Details Originals Brand-New.
Supply Ability 10000 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mini PCIe Quality 100% Original 100% Brand
Port ShenZhen
Highlight

LTE FDD Module EDGE

,

LTE FDD Module

,

ME906s-158
Leave a Message
Product Description
  • ME906s ME906s-158 ( LTE FDD module +EDGE/GSM/GPRS module )
    3G 4G LTE CAT4 UNLOCKED For ME906S ME906S-158 M.2 Quad band FDD LTE 4G Module

     Specification:

    ME906s-158 is a M.2 interface LTE module with Hisilicon Balong V711 chipset embedded, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28, Qual-band DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8 for Europe and APAC network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Europe carrier certifications, enabling easier and more flexible design and integration into end devices.



    ME906s-158 is the ideal choice for Notebook, Tablet and Ultrabook etc.



    All modules comply with the RoHS directive and Regional certification.

  • Model: LT4132 / ME906S-158
  • SPS: 845710-001
  • AS: 845709-001
  • WCDMA/HSPA/HSUPA/HSPA+: Band 1,2,5,8, all bands with diversity
  • GSM/GPRS/EDGE: 850MHz/ 900MHz/ 1800MHz/ 1900MHz
  • GPS/GLONASS: L1
  • Size: Standard Size
  • Quantity: 1 Pc
  •
  • Compatible with HP:
  • EliteBook 725 G4, 745 G4, 755 G4,
    820 G4, 840 G4, 850 G4;
    ProBook 640 G3, 645 G3, 650 G3, 655 G3;
    ZBook 15u G4
    ProBook 430, 440, 450,  470 G4
  •
  • Package includes:
  • 1 x me906s-158
  •
Product Details Show
Product Details Show

Size

Height: 30mm

Width: 42mm

Depth: 2.3mm

Weight: approx.6.0g
Form Factor 75-pin M.2/NGFF
Bands

LTE FDD:B1,B2,B3,B5,B7,B8,B20,B28

DC-HSPA+/HSPA+/HSPA/WCDMA:B1,B2,B5,B8

EDGE/ GPRS/GSM 1900/1800/900/850 MHz
Data Transfer Rate

EDGE: DL 236.8 kbps/UL 236.8 kbps

WCDMA PS: DL 384 kbps/UL 384 kbps

HSPA+: DL 21.6 Mbps/UL 5.76 Mbps

DC-HSPA+: DL 42Mbps/UL 5.76 Mbps

LTE FDD: DL 150 Mbps/UL 50 Mbps @20M Bandwidth cat4
Interface

Antenna interfaces * 2

M.2 Socket

Signal Control interface

USB 2.0 interface high speed

USIM Card interface

Power supply interface
Power Supply 3.135 V to 4.4 V (typical: 3.3 V)
Voice NA
Special Features

GNSS:GPS Standalone, A-GPS, LTO, Glonass

SIM Hotswap

IPV6

BodySAR

Tunable Antenna
Temp Range

Normal Operation: -10℃ to 55℃

Extended Operation: -20℃ to 70℃
Approvals

CE

GCF

FCC

NCC

RCM

Operator TA: Vodafone, Orange, Telstra, Spark New Zealand

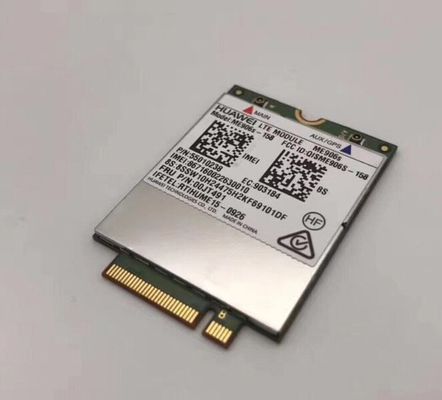

ME906s-158 LTE FDD Module +EDGE/GSM/GPRS Module Mini PCIe Type 0
