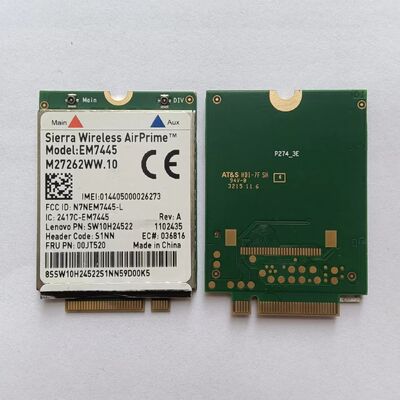

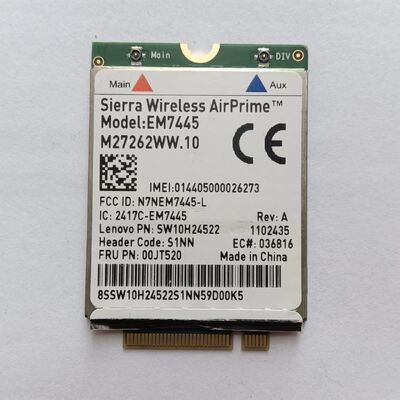

Sierra Wireless EM7445 is a high-speed 4G LTE-Advanced Pro Cat.6 wireless communication module in M.2 form factor, designed to provide global wide-area mobile network connectivity for notebook

  • Sierra Wireless EM7445 is a high-speed 4G LTE-Advanced Pro Cat.6 wireless communication module in M.2 form factor, designed to provide global wide-area mobile network connectivity for notebook
  • Sierra Wireless EM7445 is a high-speed 4G LTE-Advanced Pro Cat.6 wireless communication module in M.2 form factor, designed to provide global wide-area mobile network connectivity for notebook
  • Sierra Wireless EM7445 is a high-speed 4G LTE-Advanced Pro Cat.6 wireless communication module in M.2 form factor, designed to provide global wide-area mobile network connectivity for notebook
Place of Origin China
Brand Name Sierra Wireless
Model Number EM7445
Minimum Order Quantity 100
Price $7.00 - $16.00/pieces
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 10000 Piece/Pieces per Day
Product Details
Chipset Platform Qualcomm MDM9230 Payment Ways Paypal
Data Rate 300 Mbps DL / 50 Mbps UL Form Factor M.2 3042
LTE FDD 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66 LTE TDD 38, 39, 40, 41, 42, 43
Dimensions 42 × 30 × 2.3 Mm GNSS Integrated GPS, Glonass, Galileo, BeiDou
Leave a Message
Product Description

Sierra Wireless  EM7445 Datasheet


Sierra Wireless  EM7445 is a high-speed 4G LTE-Advanced Pro Cat.6 wireless communication module in M.2 form factor, designed to provide global wide-area mobile network connectivity for notebooks, tablets, industrial devices, and more.


1. Core Specifications


  • Chipset Platform: Qualcomm MDM9230
  • Network Standard: LTE Category 6 (LTE-A Pro)
  • Max Data Rates
    • Downlink: 300 Mbps (with Carrier Aggregation CA)
    • Uplink: 50 Mbps

  • Form Factor: M.2 3042 (Type 3042, 42×30×2.3mm)
  • Host Interface: USB 3.0 & USB 2.0
  • Operating Temperature: -30°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C


2. Supported Frequency Bands (Global Version)


  • LTE FDD: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66
  • LTE TDD: 38, 39, 40, 41, 42, 43
  • UMTS/HSPA+: 1, 2, 3, 4, 5, 8 (DC-HSPA+ 42/5.76 Mbps)
  • CDMA/EVDO: BC0, BC1, BC10


3. Key Features


  • Carrier Aggregation: Supports multi-band combinations (e.g., 1+8, 2+5, 3+7, 4+12, 7+20, 41+41, etc.)
  • GNSS: Integrated GPS, Glonass, Galileo, BeiDou
  • Voice Support: Optional VoLTE and CSFB (supported via firmware upgrade)
  • Others: eCall, IPv6, high-speed USB, built-in network protocol stack, multi-carrier compatibility


4. Typical Applications


  • Built-in 4G for notebooks and 2-in-1 devices
  • Industrial tablets, medical equipment, outdoor gateways
  • Telematics, OBD, vehicle networking
  • HD video transmission, industrial routers, IoT gateways
